Description
Element thickness: 44 mm

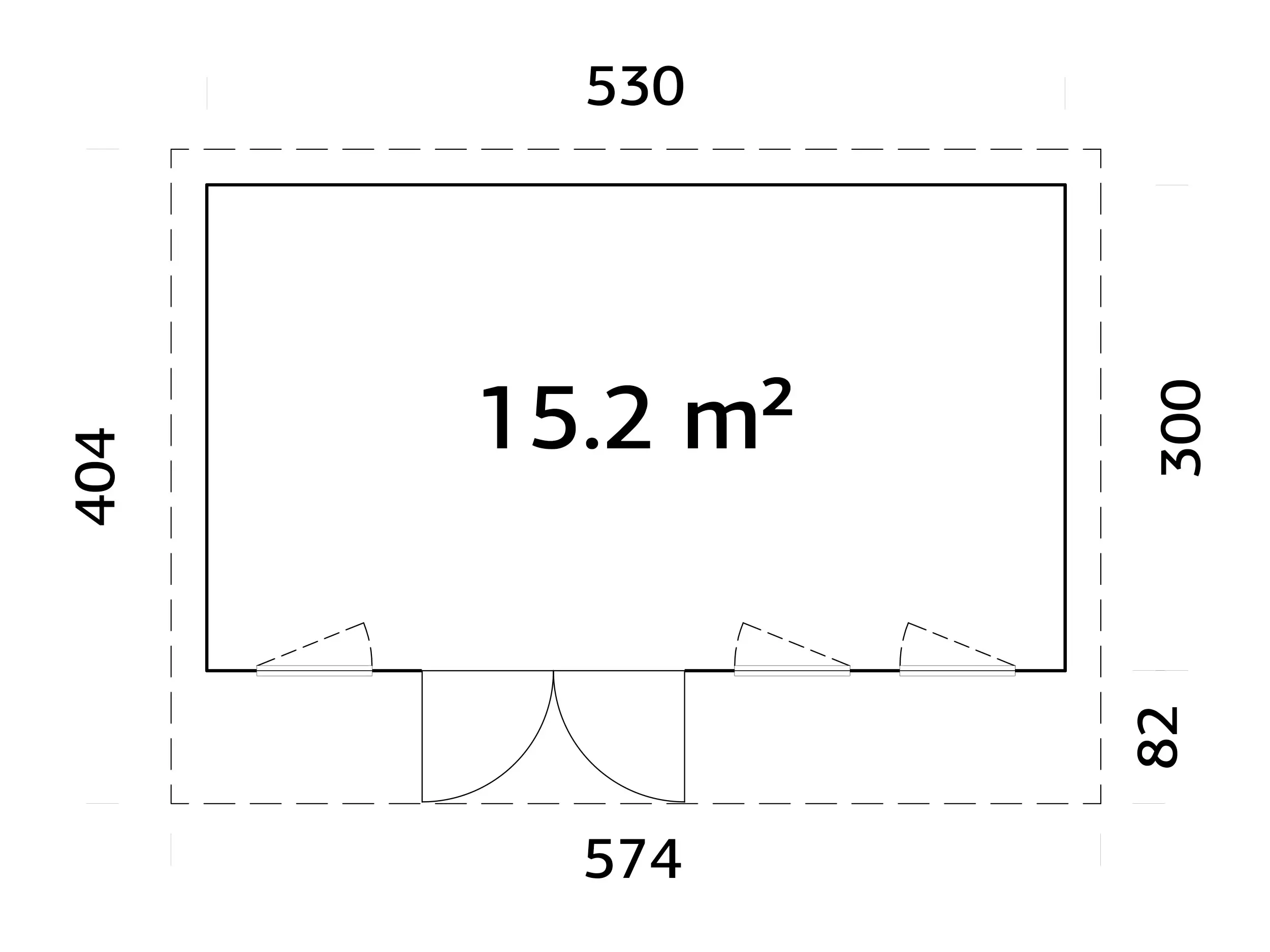

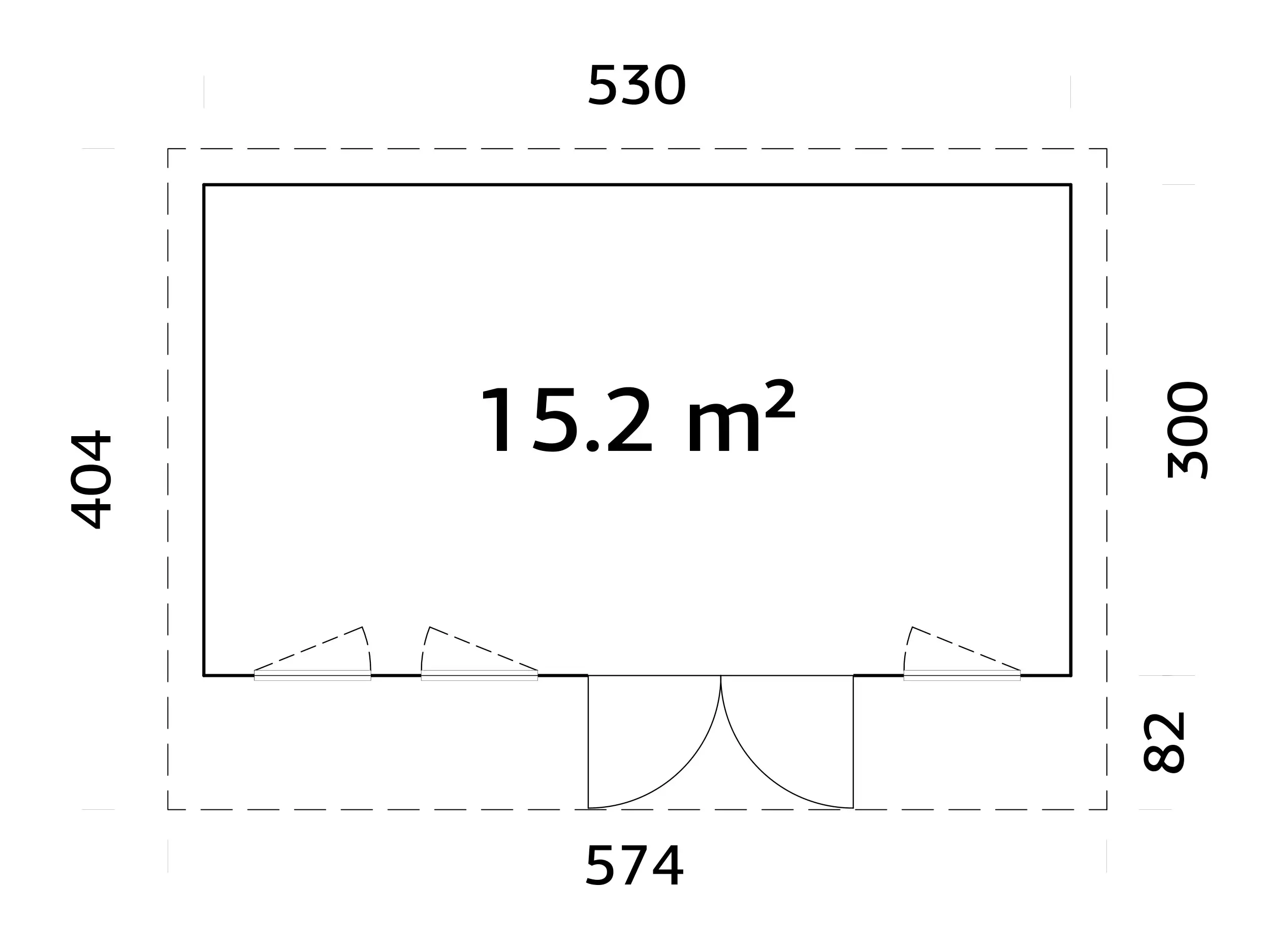

Dimensions: 530 × 300 cm
Gross floor area: 15,9 m²

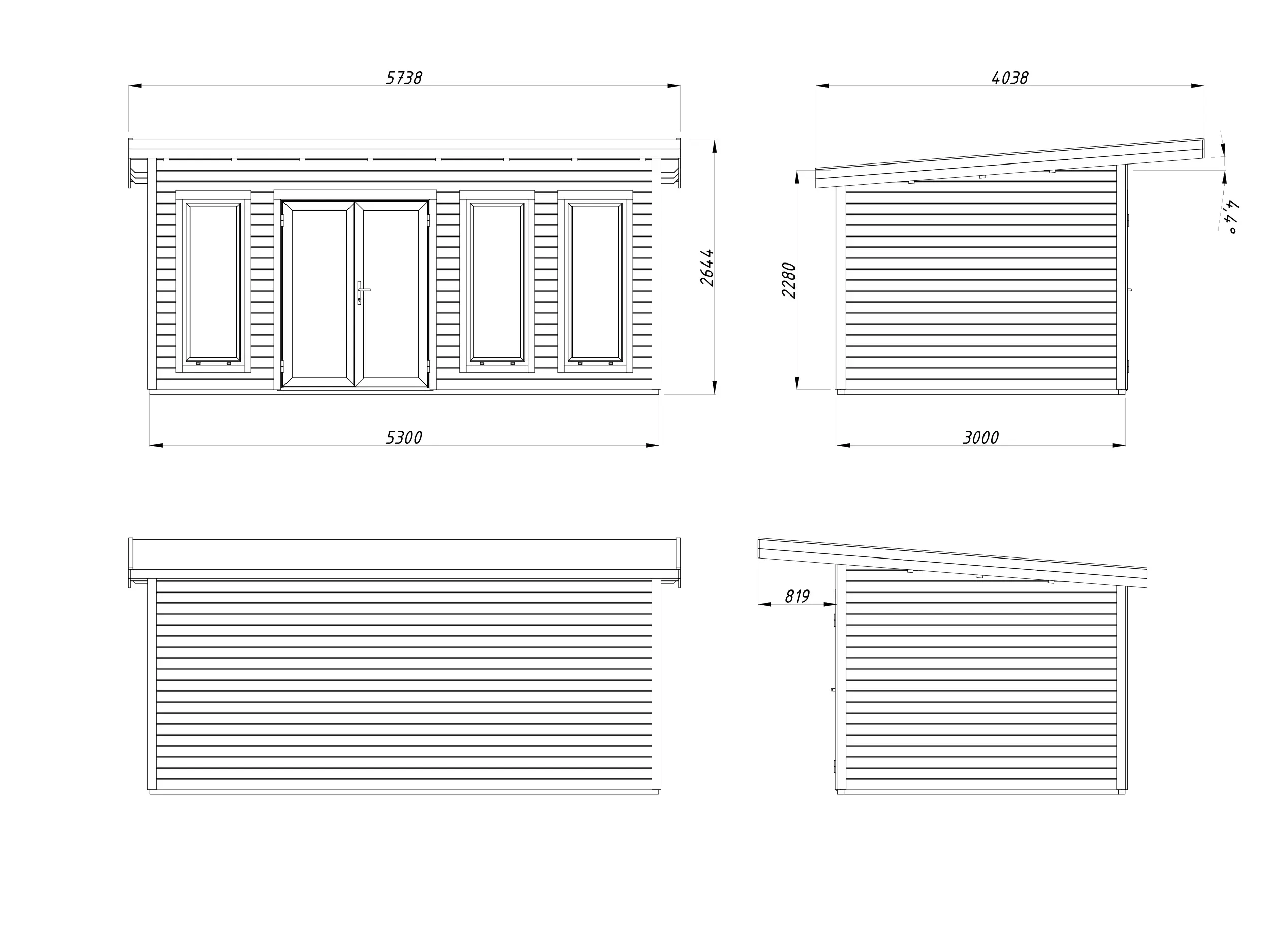

Total height / Wall height: 264 cm / 228 cm
Door glass: Reinforced double glazing
Window glass: Reinforced double glazing
Ceiling planks: 19 mm / 19 mm
Roof area: 22,8 m²
Roof slope: 4.4°.
OTHER MEASURES
Cabin 12 | 8,4 m2
Cabin 12 | 8,4+7,9 m2
Cabin 13 | 12.4 m2
Cabin 13 | 12,4+7,9 m2
Cabin 14 | 12,7 m2
Cabin 14 | 12,7+7,9 m2
Cabin 15 | 16,7 m2
Cabin 15 | 16,7+7,9 m2
Cabin 16 | 15,2+7,9 m2
Cabin 17 | 19,2 m2
Cabin 17 | 19,2+7,9 m2
